Description
GW Electric Boiler EP BL is an excellent choice both for new heating systems and for replacing an old boiler. Manufactured by Värmebaronen, the boiler is designed for water-based (hydronic) heating systems and industrial processes.
The GW Electric Boilers with outputs of 511.5 and 600 kW have their output divided into 15 stages, and the control automatically adapts to the heating demand, ensuring optimal energy efficiency.
As fossil fuels are phased out and replaced by alternative heating solutions, the demand for reliable backup systems is growing. The GW Electric Boiler is a dependable option as a backup heat source.
Each boiler is equipped with a thermostat that maintains a constant supply water temperature. In addition, intelligent temperature control optimizes power supply and extends the service life of the contactors.

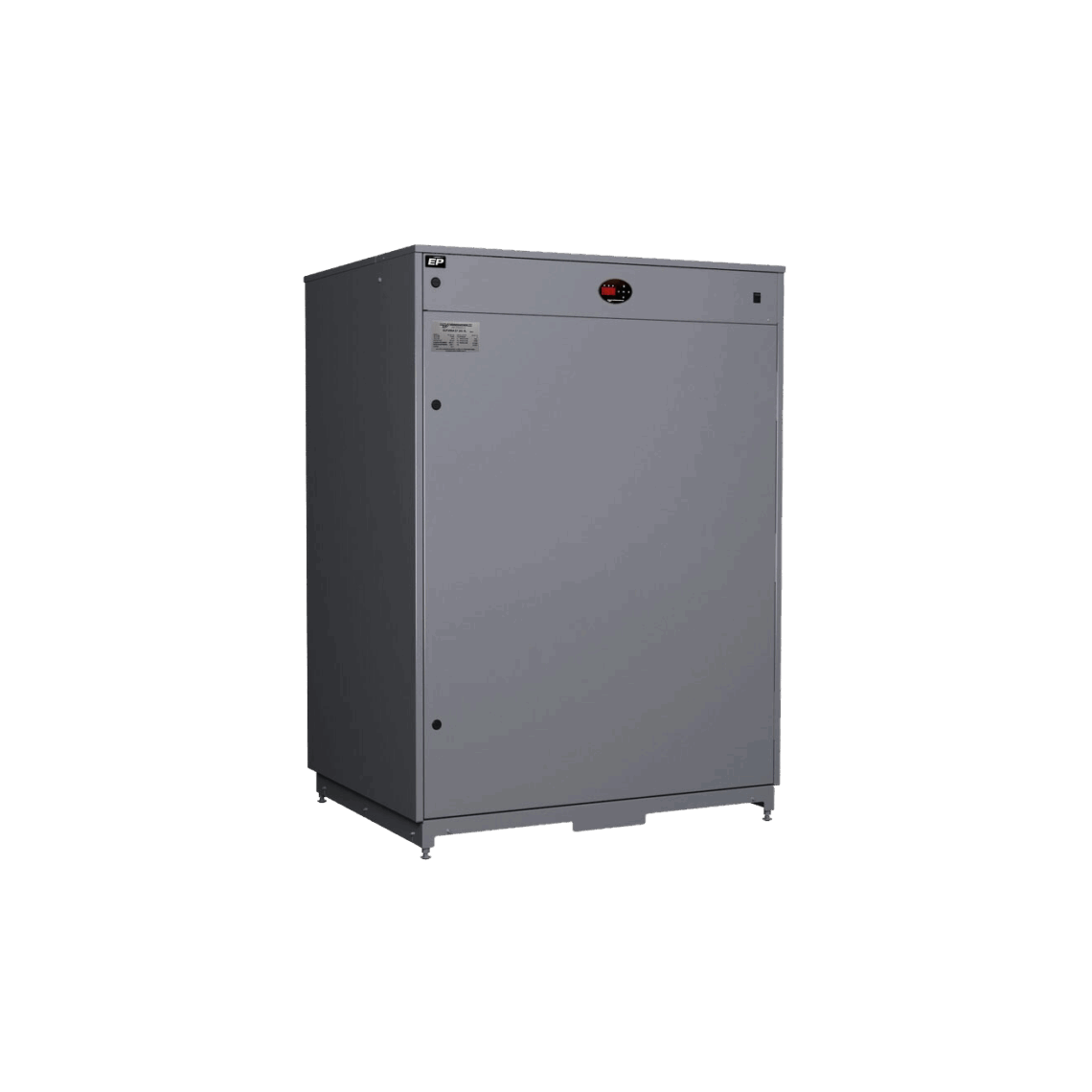

GW Electric Boiler EP 510-600 BL
-
Level sensor
-
Automatic air vent
-
Digital display
-
Connection flanges
-
Manufacturer: Värmebaronen
Technical Information
Technical data
| Model | GW EP 510 BL | GW EP 600 BL |
| Product code | 9010340 | 9010341 |
| Power stages | 15 | 15 |
| Maximum power, kW | 511,5 | 600 |
| Voltage, V | 400 V 3~+ control voltage 230 V ~ | 400 V 3~+ control voltage 230 V ~ |
| Current at maximum power, A | 738 | 866 |
| Power / stage, kW | 34 | 40 |
| Design temperature | 110 °C | 110 °C |
| Operating temperature | 20 – 95 °C | 20 – 95 °C |
| Ambient temperature | 10 – 30 °C | 10 – 30 °C |
| Cable flange | FL 33 2 pcs 2xØ60 | FL 33 2 pcs 2xØ60 |
| Cable connection mm² | 2 x M12 | 2 x M12 |
| Test pressure | 0,86 Mpa (8,6 bar) | 0,86 Mpa (8,6 bar) |
| Water volume vessel/Operating pressure | 315 l / 0,6 Mpa (6 bar) | 315 l / 0,6 Mpa (6 bar) |
| Pipe connection, supply/return | DN 100 PN 16 | DN 100 PN 16 |
| Vent valve | Yes | Yes |
| Depth x width x height, mm | 1055x1055x1660 | 1055x1055x1660 |
| Weight, not filled with water, kg | 400 | 400 |
| Minimum ceiling height, mm | 2400 | 2400 |
| Enclosure class | IP X1 | IP X1 |
